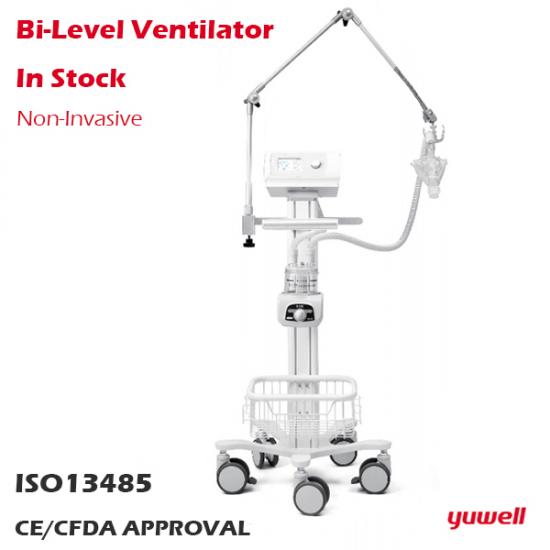

Non Invasive Yuwell Bi-Level PAP Ventilator Respiratory for Hospital
Certification:IS013485 /CE /CFDA approved
Mode: CPAP, S, T, ST, VGPS
Pressure: 4-30 cm H2O Trigger adjustment Cycle adjustmentSlope adjustment
Noise: ≤ 32 dB(A)
*Oximeter (Optional)
with YF-01 mask , humidifier SD card & trolley
Certification:IS013485 /CE /CFDA approved
Mode: CPAP, S, T, ST, VGPS
Pressure: 4-30 cm H2O Trigger adjustment Cycle adjustmentSlope adjustment
Noise: ≤ 32 dB(A)
*Oximeter (Optional)
with YF-01 mask , humidifier SD card & trolley
Product Specification
Scope of Application:

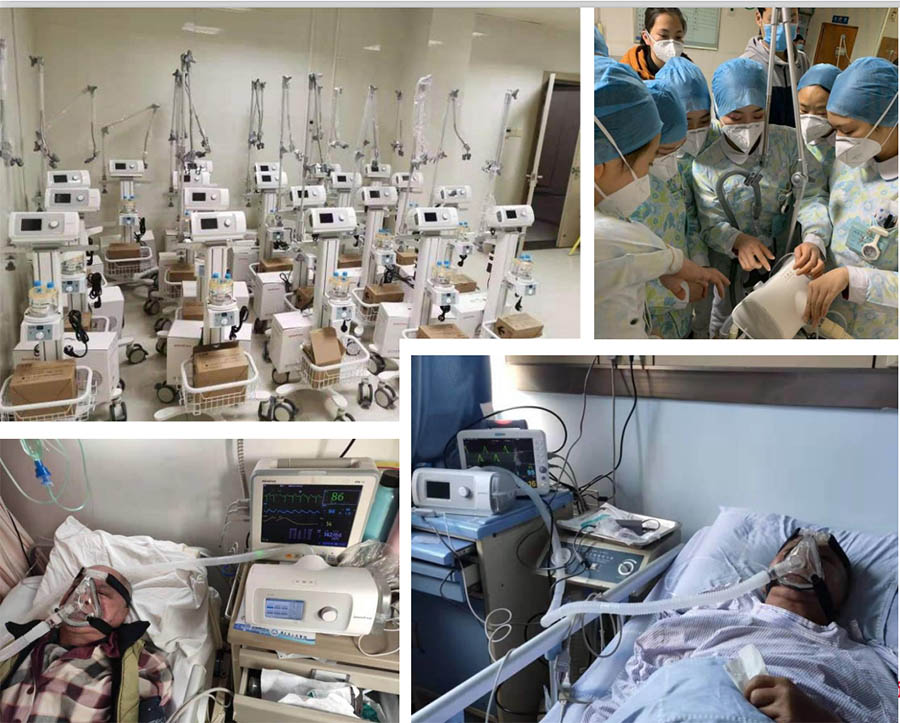

For adult patients with ARDS, hypoventilation syndrome, for bi-level non-invasive ventilation in a hospital or home.
1 . The main function:
1. Different treatment options can be provided according to patients' needs, from CPAP to S, T, S / T, VGPS five modes 。
2. Adjustable trigger sensitivity.
3. Real-time monitoring and recording of blood oxygen saturation.
4. alarm function.
5. Record function (SD card).
6. Maximum leak compensation function. 60L/min
2. The Key Technical Parameters:
1. Working mode: CPAP, S, T, ST, VGPS.
2. Ventilation parameters:
2.1 Inspiratory pressure: 4-30 cmH2O (0.5 cmH2O interval)
2.2 Expiratory pressure: 4-30 cmH2O (0.5 cmH2O interval)
2.3 Treatment pressure: 4-20 cmH2O (in CPAP mode, 0.5 cmH2O interval)
2.4 Delayed boost: 0-45 minutes (interval of 5 minutes)
2.5 Breathing frequency: 5-50 times / minute (interval 1 time / minute)
2.6 Breathing ratio: 10-70% (interval of 1%)
2.7 Rise time: 1-5 steps (1 step interval, 1 step rises fastest, 5 steps rises most slowly)
2.8 Inhalation sensitivity: 1-5 steps (1 step interval, 1st step triggers fastest, 5th step 1st step triggers slowest)
2.9 Exhalation sensitivity: 1-5 (1 interval, the 1st trigger is the fastest, 5th and 1st the slowest)
2.10 Tidal volume: 50-1500ml (effective in VGPS mode, interval 50ml)
3. VGPS(same with AVAPS,can set Target tidal volume)mode:
3.1 Maximum IPAP value adjustable range: 4-30 cmH2O
3.2 Adjustable range of minimum IPAP value: 4-30 cmH2O
3.3 EPAP value adjustable range: 4-30 cmH2O
3.4 Target Tidal Volume: 50-1500ml
4. Display range of monitoring setting parameters:
4.1 Respiratory waveform can be displayed;
4.2 Current mode: CPAP, S, T, ST, VGPS
4.3 Inspiratory pressure: 4-30 cmH2O
4.4 Expiratory pressure: 4-30 cmH2O
4.5 Breathing frequency: 5-50 times / minute
4.6 Breathing ratio: 10-70%
4.7 Air leakage: 20-99.9lpm
4.8 Tidal volume: 50-1500ml
4.9 minute ventilation: 0-50lpm
4.10 Blood oxygen saturation: 70-100%
4.11 Pulse rate: 25-250bpm
4.12 Delay boost: 0-45 minutes
5. Alarm items:
5.1 High pressure sound prompt: Turn on / off sound prompt
5.2 Low minute ventilation sound prompt: Turn on / off sound prompt, can be set to 1-10L (interval 1L)
5.3 Air leakage sound prompt: on / off
5.4 Power off sound prompt: on / off
5.5 Choking voice prompt: On / off, choking time can be set to 10-40 seconds (interval of 5 seconds)
5.6 Low Tidal Volume Sound Prompt: On / Off, Set Tidal Volume Value Range 50-500ml (Interval 50ml)
6. Specifications
6.1 Weight: about 1500g
6.2 Operating temperature: 5-35 ° C
6.3 Relative humidity: 10% -90%
6.4 Power supply: input is AC 100-240V, 50-60Hz, 1.8A Max; output: DC 24V, 3.33A.
