Cold Chain Shipping Box

Pallet thermal insulated container cold chain shipping box

Our new VPU pallet thermal boxes are large cold chain shipping boxes are used to stack, store, protect, and transport materials in the course of being handled by materials handling equipment such as forklifts, pallet jacks or conveyors, being stored in racking or bulk storage or being positioned in transport vehicles. The most important is that it can keep inside items with nice performance.
  • item no.:

    VPU2-8857W1
  • lead time:

    15
  • payment:

    FOB Xiamen
  • color:

    Grey
  • MOQ:

    1
products details

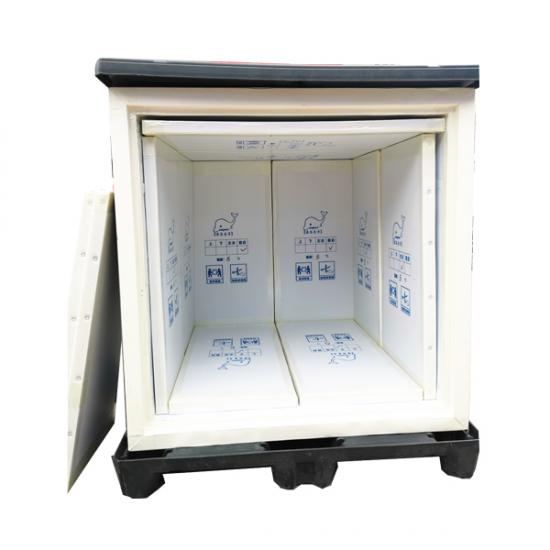

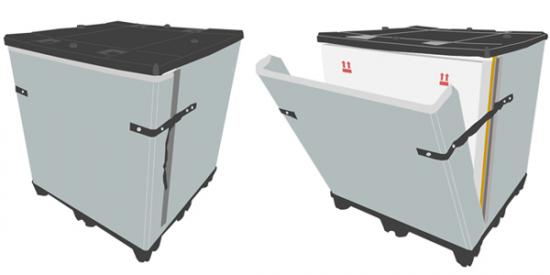

Pallet thermal insulated container cold chain shipping box


Our new insulated pallet shipper includes solutions for 2-8°C, 15-25°C and frozen temperature ranges. Each solution has a universal pack-out design to be used in both hot and cold seasons while also accommodating the demands of cross-hemispheric shipments. It can reach 200 hours keeping the temperature range 0~5°C with average temperature 35°C.


SPECIFICATION
Model Number VPU2-8857W1
External Cover Plastic insulation box
VPU Insulation VPU high performance insulation pane
External Dimensions 1150x1150x1290mm
Internal Dimensions 960×960×960mm
Container Capacity 885L
Cold source Customize (PCM 5°C, 18°C, 25°C, -10°C, -18°C)
Cold life With 6pcs Pink PCM +5°C at 30°C, keep 2℃~8℃ for 200h
Optional Accessories Temperature display, GPRS tracking system, etc.
Application Vaccine, Insulin, Human Albumin, Health Products, Biological agents, Medicine, etc.





Unique ice bricks fixing bracket


Using our special ice bricks fixing bracket to combine multiple ice boxes into one ice box accessory, making full use of the existing ice packs to form a large ice box to match the large box, no need to consider the mold opening problem for large ice bricks, greatly facilitates the handling of the ice bricks and the loading and unloading into the insulated pallet shipper.






Simple cargo handling process

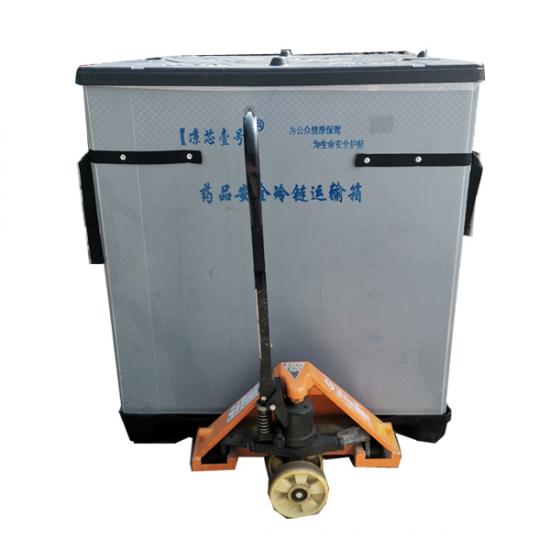

Loading the goods, the pallet thermal box can work with the forklift in any direction without manually moving the goods from the existing pallet into the shipper, and then assembling the insulated pallet container with insulation boards.







Customizable size design


Our pallet thermal box is manufactured by our unique modular production process and can be customize in various sizes based on customer requirements without additional expensive mold costs.






Excellent insulation barrier performance


The insulated pallet shipper uses PU & VIP as the core insulation material. After testing, the insulation time can reach 200 hours keeping the temperature range 0~5°C with average temperature 35°C.





Leave a message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
