New VPU box - for a healthier and better life

Strong, stiff, light. Pick three.

Starting immediately, all of our new VPU medical cooler boxes feature a new design with no assembly required and integrally molded. Without compromising stiffness or strength, it is well sealed and increased cold life performance.

Our new VPU cold chain shipping boxcomes with a vpu insulated shipper box, temperature display, protective outer cover and PCM.

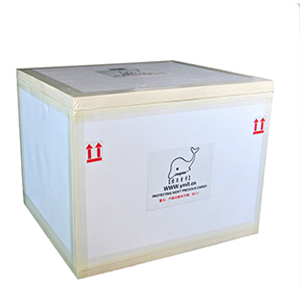

SHIPPER BOX = 5 x PANELS + ASSEMBLY TAPE + LID

-Light Weight

-System-R Value = 1.8

-Longer Holding Times.

-More Stable Temperatures.

-Larger Controlled Temperature Space.

-Rectangular shape - convenient to load, stack and transfer, with no wasted shipping space.

-Full size removable lid, easy access to Cold Space for Refrigerant and Payload.

-Easy to Clean before and after use.

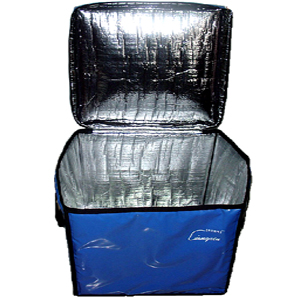

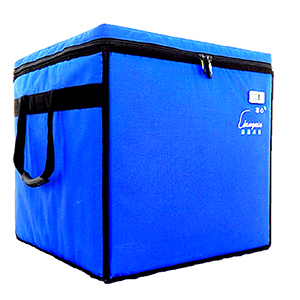

The Outer Cover:

-Protects the Shipper Box from accidental damage, and damage from being dragged across a rough floor.

-Provides webbing handles to lift/carry the box.

-Provides the means of securely closing the lid of the shipper.

Cover Materials:

Outer Fabric - Polyester, 1680D

Inner Lining - Aluminised PE

Foam Filler - Flexible Closed Cell PE Foam

Piping and Handles - Polyester Webbing

Zip Fastener - Nylon

PCM (Phase Change Materials) use phase changes from one phase (eg. “liquid”) to another phase (eg. “solid”) to absorb or release large amounts of thermal energy, called Latent Heat.

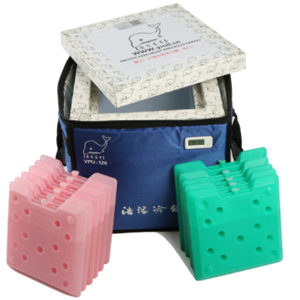

PolarBox PCM (Phase Change Material) Packs are:

-Moulded from HDPE, contain PCM, and are fully sealed.

-Only suitable for use with PolarBox VPU products.

-Designed to fit against the box walls, and use chamfers on each edge to lock the packs in place.

-Fragile when solid - Do Not Drop and Handle with Care

-Colour coded, and marked with each Phase Change Temperature

Pink: +5°C, +18° C and +35°C.

Green:-5°C, -10°C and -25°C.

Select and precondition according to our SOP.

PolarBox HAS THESE KEY POINTS:

• Reusable.
• Lightweight.
• Protected by an outer zipped cover, foam lined to guard against damage.
• Square or rectangular box, with no protruding fittings - easy to handle, load, transport and stack.
• PCM refrigerant packs fit the box perfectly, with no gaps, and no waste space.
• Unique, patented VPU panel construction reduces thermal bridging, and increases structural integrity.
• Prime insulation is VIP (Vacuum Insulated Panel) as the prime insulation, in conjuction with Polyurethane closed cell rigid foam offers critical protection and stability over ambient temperatures from -25°C to +43°C.
• PCM refrigerants with a wide range of Phase Change Points, a wide choice of temperature limits, and long holding times, at any ambient temperature.

Answers to these questions will allow us to offer Shippers to the exact requirements of the Customer:

• What is the payload?
• What is the required range of controlled temperature?
• What is the range of ambient temperature?
• What is the controlled temperature period (hours) required?
• What is the weight of a single payload?
• How is the payload packaged?
• What is the destination country for the payload? (To assess compliance issues)
• How will shipment of PolarBox from Haotian be made? (By air, land or sea)
• What is the country of import, and the Port of Entry?
• Is Insurance required?
• Is an external digital thermometer required?
• Is an internal data logger required?
• What labelling is required on the outside of the shipper? Who will supply the artwork?
• Is there a requirement for documentation to be carried inside the box? If so does it need to be in a sealed pouch?
• Does the Customer have any special requirements? Please list.
